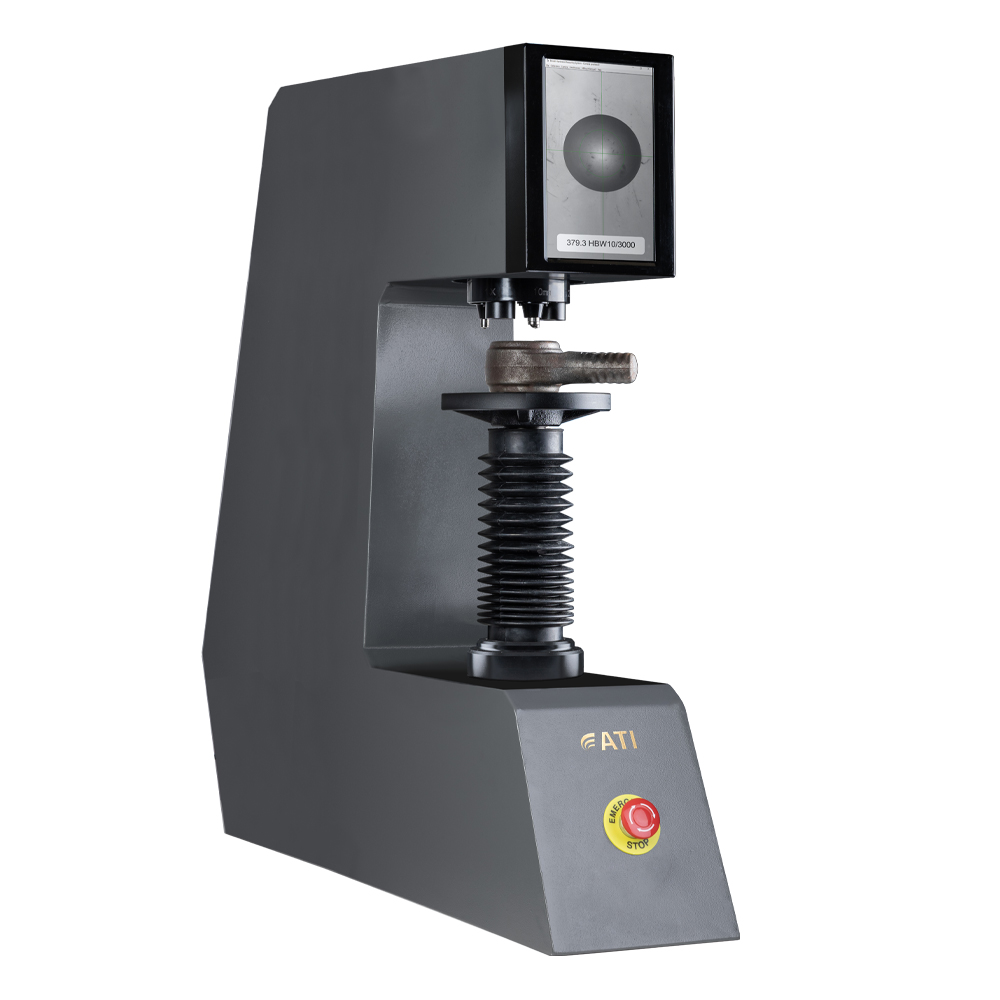

ATI B3000

Fully automatic Brinell hardness tester with 5 position automatic rotating turret and motorized elevating screw

ATI B3000 is an automatic Brinell hardness tester with a multi-position automatic turret at 5 steps

ATI B3000 is automatic Brinell hardness tester for Brinell hardness testing. Simply select the desired hardness scale and press the START button. The tester automatically positions the test piece against the indenter, initiating the loading cycle with no manual effort required.

The integrated turret efficiently manages indenter and objective switching, ensuring seamless operation. By touching the indentation image, you can instantly view the results on the large graphic display. Once the measurement is complete, the ATI B3000 is ready for the next test, enhancing your productivity.

With its combination of performance and user-friendliness, the ATI B3000 hardness tester is the ideal solution for accurately measuring hardness on various surfaces, whether for large or small products. Choose the ATI B3000 for reliable and efficient Brinell hardness testing.

AUTOMATIC TURRET

ATI B3000 is equipped with a multi-positions automatic turret, which has 5 steps: 3 indenters for Brinell hardness tests and 2 optic lens for the indentation reading (1X and 2X).

During the Brinell test cycle, ATI B3000 is fully autonomous and motorized: just push the START button and the head performs the test cycle in automatic succession without breaching a phase and with automatic switching for a fully automatic and motorized test cycle.

SOFTWARE

The software makes the measurement automated in each its phase: set the hardness test scales, check the camera properties, set the standard test method, conversion scales, manage the instrument tools and check if the installed instrument is correct and compliant with the selected hardness test method. The lists of results and their images are stored in the archive. The results are automatically transformed into graphs and statistics, in order to facilitate their control. Data can be exported by USB.

ATI B3000 is an automatic Brinell hardness tester with a multi-position automatic turret at 5 steps

ATI B3000

Automatic Brinell hardness tester with 5 position automatic rotating turret

ATI B3000 is automatic Brinell hardness tester for Brinell hardness testing. Simply select the desired hardness scale and press the START button. The tester automatically positions the test piece against the indenter, initiating the loading cycle with no manual effort required.

The integrated turret efficiently manages indenter and objective switching, ensuring seamless operation. By touching the indentation image, you can instantly view the results on the large graphic display. Once the measurement is complete, the ATI B3000 is ready for the next test, enhancing your productivity.

With its combination of performance and user-friendliness, the ATI B3000 hardness tester is the ideal solution for accurately measuring hardness on various surfaces, whether for large or small products. Choose the ATI B3000 for reliable and efficient Brinell hardness testing.

AUTOMATIC TURRET

ATI B3000 is equipped with a multi-positions automatic turret, which has 5 steps: 3 indenters for Brinell hardness tests and 2 optic lens for the indentation reading (1X and 2X).

Its turret has a 360° horizontal rotation with indenter and lens.

During the Brinell test cycle, ATI B3000 is fully autonomous and motorized: just push the START button and the head performs the test cycle in automatic succession without breaching a phase and with automatic switching for a fully automatic and motorized test cycle.

SOFTWARE

The software makes the measurement automated in each its phase: set the hardness test scales, check the camera properties, set the standard test method, conversion scales, manage the instrument tools and check if the installed instrument is correct and compliant with the selected hardness test method. The lists of results and their images are stored in the archive. The results are automatically transformed into graphs and statistics, in order to facilitate their control. Data can be exported by USB.

Model: ATI B3000
Brinell Hardness scale: HBW 2.5/62.5 – HBW 2.5/187.5 – HBW 5/62.5 – HBW 5/250 – HBW 5/750 – HBW 10/100 – HBW 10/500 – HBW 10/1500 – HBW 10/3000
Test Force (Kgf): 62.5 Kgf (612.9N), 100 Kgf (980.7N), 125 Kgf (1226N), 187.5 Kgf (1839N), 250 Kgf (2452N), 500 Kgf (4903N), 750 Kgf (4905n), 1000 Kgf (7905n), 1500 Kgf (14710N), 3000 Kgf (29420N)
Loading system: Electronic control of load cells in “Closed-Loop”
Automatic turret standard: 5 steps (3 indenters / 2optic lens 1X and 2X)
Standards: ISO 6506, ASTM E10-23 and equivalents
Accuracy of test force: Accuracy better than 1% (62.5 – 3000 Kgf); Accuracy better than 0.5% (500 – 3000 Kgf)
Measuring device resolution: 0.1 μm
Hardness resolution: 0.1 HBW
Dwell load time: From 0 to 99 seconds
Hardness accuracy: Better than 0.5%
Height capacity: 260 mm
Depth capacity: 175 mm
Measurement range: 15.9-650 HBW (ASTM E10 (Recommended effective hardness value)
Camera resolution: 1,2 MPixel
Data output: USB
Data storage: The measured values are stored in EXCEL format on a USB flash disk
Display: Multicolor LCD touch-screen 12”
Computer system: WIndows 11
Power supply: 110/220 V – 50/60 Hz single phase
Dimensions: 581 x 269 x 912 mm
Weight: 180 kg
