EXPLORER

Innovative Rockwell Hardness Tester

Explorer stands at the forefront of technological innovation. Fully integrated with CNC machines and robots, it functions seamlessly as an extension of the machine itself. This cutting-edge instrument allows hardness testing directly on the production line, making it possible to perform tests in the most inaccessible and hard-to-reach areas, ensuring precision without disrupting the workflow.

  • Test loads 2 – 5,6 kgf (19,614 – 54,92 N) From 3 to 187,5 kgf (From 29,42 to 1839 N) – As optional 250 kgf (2452 N)
  • Rockwell and superficial Rockwell ISO 6508 / ASTM E-18 HRA – HRB – HRC – HRD – HRF – HRG – HRL – HRM – HRR / HRN – HRT
  • Brinell HBWT ASTM E-103 / SO 6506 1/30 – 1/10 – 2.5/15.6 – 2.5/31.5 – 2.5/62.5 – 2.5/187.5 – 5/125
Contact Us

Rockwell Hardness Tester for Robots and CNC Machines

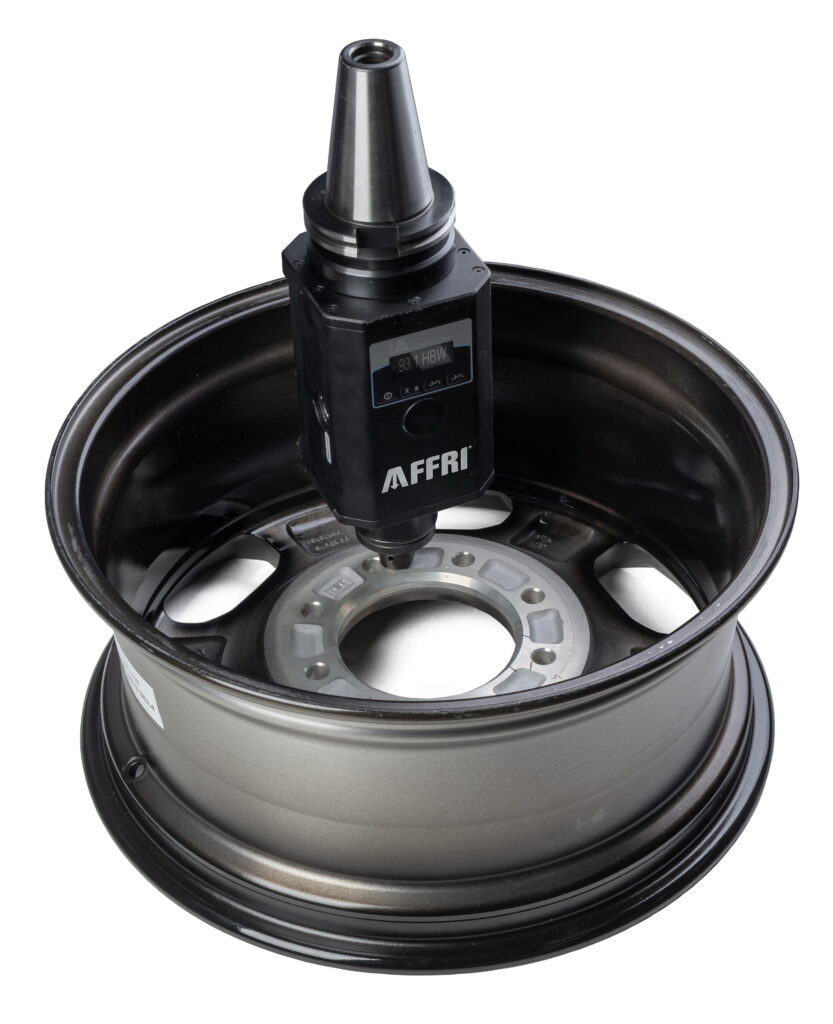

Explorer is an advanced Rockwell hardness tester designed for seamless integration with robots and CNC machines. Fully compliant with ASTM and ISO standards, it combines precision hardness measurement with automation in a single, cutting-edge instrument.

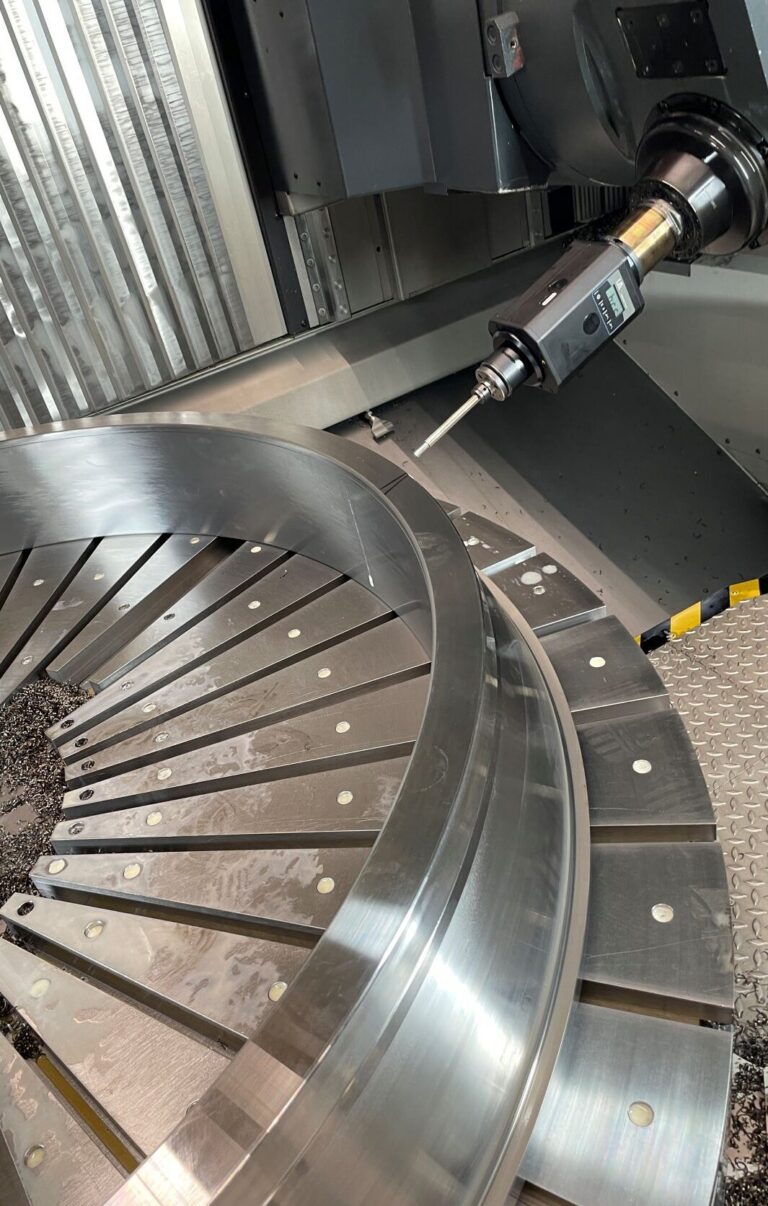

As a cornerstone of both hardness testing and automation, Explorer offers easy control directly from the machine’s main interface, where it is recognized as one of the tools. Engineered for high reliability and accuracy, this tester boasts a user-friendly design that ensures fast and precise measurements. Perfectly suited for mounting on CNC machines or machining centers, Explorer operates just like any other tool in your setup. It offers versatile coupling options, including ISO, DIN 30, 40, 50, and customizable options upon request.

UNLIMITED TESTING POSITIONS

Wireless connection between CNC Machines and Robots
