ATI UCI-918
The ATI UCI-918 is a portable ultrasonic hardness tester that is fully compliant with industry standards. It features a certifiable 136° Vickers indenter, ensuring accuracy and reliability. The device features adjustable load forces of 1, 2, 5 and 10 kg, allowing versatility in testing various material thicknesses. It supports calibration for various elastic modulus materials, requiring only a single point calibration to accommodate new materials. It allows calibration to any hardness standard, even when no conversion table is available. Test results are available in as little as 2 seconds, improving efficiency in industrial settings.It’s operative at 360°, including inverted measurements, ensuring flexibility and accuracy in various testing environments.
Applications

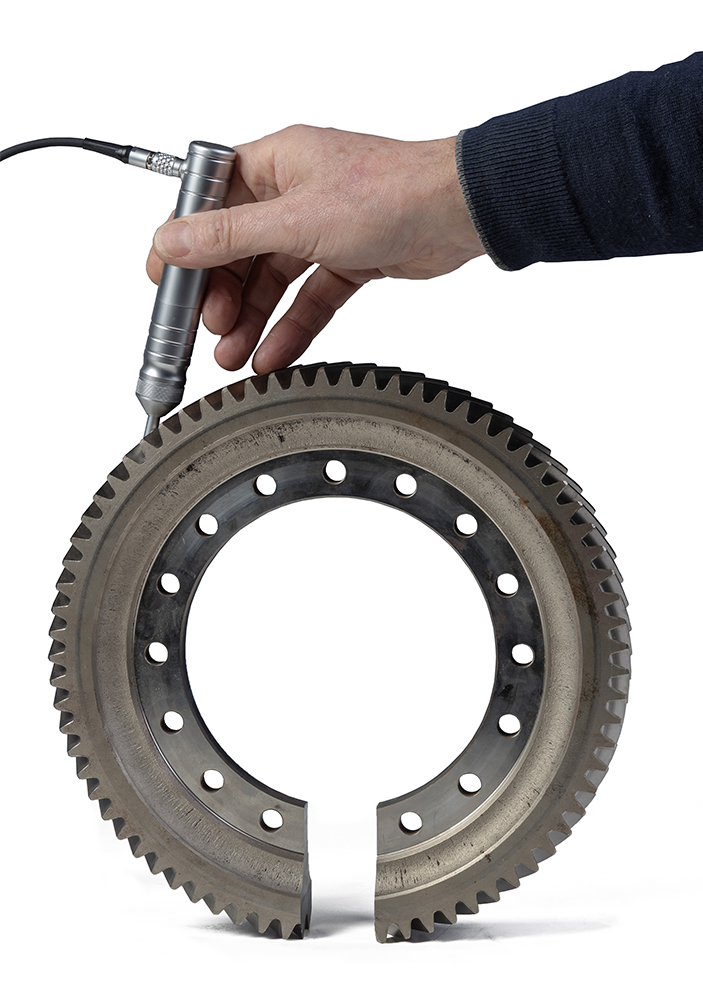

The ATI UCI-918 is designed to evaluate a wide range of materials, including ferrous and non-ferrous metals and their alloys. This versatility makes it particularly effective for hardness testing on complex components such as flange edges, gear root stampings, dies, thin plates, surface hardened gear teeth, gear splines and conical sections, providing comprehensive coverage for various industrial applications. One of the distinguishing features of the ATI UCI-918 is its ability to provide accurate and reliable measurements on various shapes and thicknesses, without positioning limitations, and is 360° operable. materials and complex components, positions it as an industry leader.
Vickers indentation
ATI UCI-918 is equipped with a certifiable Vickers indenter set at 136°, the ATI UCI-918 ensures accurate measurements and compliance with industry standards. This feature not only enhances the tester’s versatility but also provides further testimonial to its performance and reliability in various applications. One of its standout features is its capability to perform certified Vickers hardness tests, making it an invaluable tool for industries requiring rigorous quality assurance. ATI UCI-918 combines cutting-edge technology with certified testing capabilities, ensuring hardness tests that comply with established standards.
| Model: | ATI UCI-918 |
| Compliance Standards: | ASTM-A1038, GB\T34205, DIN 50159-1, JB/T9377, JJG-654 |
| Measuring Range: | HV50-1599, HRC20-76, HB76-618, HRB41-100, HRA61-85.6, Mpa255-2180 |
| Hardness Parameter: | HRC, HRB HRA HB HV |
| Accuracy: | HRC: ±1.5% HRC – HB: ±3% HB – HV: ±3% HV |
| Impact Energy: | 2 Kgf (Optional: 0.5 Kg, 1 Kg, 5 Kg, 10 Kg) |
| Display: | 3.5-inch LCD color display |
| Memory: | 50 groups of data & 10 calibration files |
| PC connection: | Available |
| Printer connection: | Available (Bluetooth) |
| Power supply: | Rechargeable Li-ion battery 3000mAh, 3.6V |
| Temperature: | Tests can be performed in an environment with a temperature between 10°C and 35°C |
| Dimensions: | 155 x 80 x 30 mm |
| Accessories: | The following probes are available on request: 0.5kgf, 1kgf, 5kgf, 10kgf) |
| Allowable Max error in %: | TEST BLOCKS | HV10 | HV5 | HV2 | HV1 | HV0.8 | HV0.3 | HV0.1 |
| Allowable Max error in %: | < 250 HV | 4 | 4 | 4 | 4 | 4 | 5 | 5 |
| Allowable Max error in %: | 250- 500 HV | 4 | 4 | 4 | 4 | 4 | 6 | 6 |
| Allowable Max error in %: | 500 – 800 HV | 4 | 4 | 5 | 5 | 5 | 7 | 7 |
| Allowable Max error in %: | > 800 HV | 4 | 4 | 6 | 6 | 6 | 8 | 8 |
| Probes: | 0.5 Kg | 1 Kg | 2 Kg | 5 Kg | 10 Kg |
| Test Force: | 5 N | 10 N | 20 N | 50 N | 98 N |
| Probe Diameter: | 22 mm | 22 mm | 22 mm | 22 mm | 22 mm |
| Length: | 150 mm | 150 mm | 150 mm | 150 mm | 150 mm |
| Senson Diameter: | 2.4 mm | 2.4 mm | 2.4 mm | 2.4 mm | 2.4 mm |
| Maximum Roughness: | Ra < 3.2 um | Ra < 3.2 um | Ra < 5 um | Ra < 10 um | Ra < 15 um |
| Minimum Weight: | 0.3 kg | 0.3 kg | 0.3 kg | 0.3 kg | 0.3 kg |
| Minimum Thickness: | 2 mm | 2 mm | 2 mm | 2 mm | 2 mm |
